How To: Build A Gas Fire Pit in 10 Steps!

A fire pit is a great way to enjoy time outside. This easy DIY project is great for all skill levels and customizable to your own backyard or patio. It can be built in grass, on concrete, or patio pavers. Gather around a warm and cozy fire with family and friends to create memories that will last a lifetime.


Here’s what you’ll need:

  • Concrete Hardscape Block

  • DIY Gas Burner Kit With Control Panel (Try the DIY-38 From The Outdoor Greatroom Company, Call Us Today For Pricing!)

  • Lava Rock (0.5 Cubic Bag or Approximately 20 lbs Recommended)

  • 1 Vent Block

  • Exterior Grade Concrete Adhesive

  • 1 AAA Battery For Burner Ignition

  • Vapor Barrier If Building In Grass or on Pavers

Tools Needed For Block Assembly:

  • Level

  • Shovel If Building In Grass

  • Rake If Building In Grass

  • Mallet

  • Caulk Gun

Tools Needed For Burner Assembly:

  • 2 Adjustable Wrenches

  • 7/16” Wrench

  • Power Drill With Phillips Bit

1. Before assembling your gas fire pit, plan where you want to build it and decide how you will supply gas to this location. If you choose to run a natural gas line to the unit, be sure to have it installed by a certified gas technician before you begin this project. Check any city ordinances as well, to ensure your new fire pit will be legally built to code.

2. If putting your fire pit in grass, mark a 40” diameter circle and remove all grass, sod, and roots. Remove 2” of soil within the same area. Be sure to level the soil where your fire pit will be built and add between 1-2” of paver base. Pack the paver base and use a level throughout the process.

3. After the paver base is installed, if using in grass or on top of a paver patio, install the vapor barrier. This will prevent moisture from the ground and protect your Gas Burner Kit. The vapor barrier is not needed if building on a concrete slab.

4. Next lay your first ring of hardscape block in a circle. We chose to use 4” tall tumbled radius pavers, but you can also use retaining wall block or something similar. We recommend an interior diameter between 32”-37”. Use a rubber mallet to level.

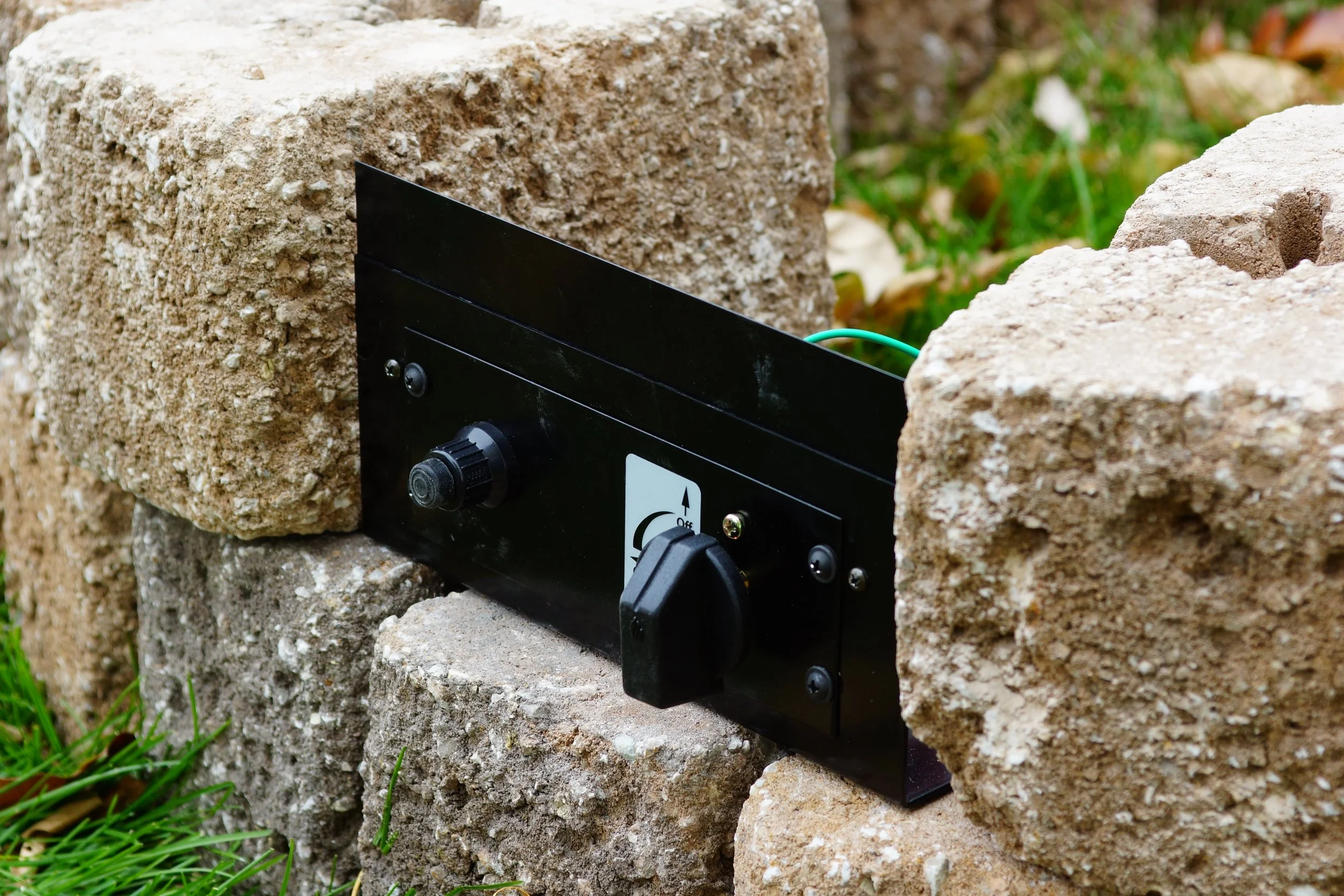

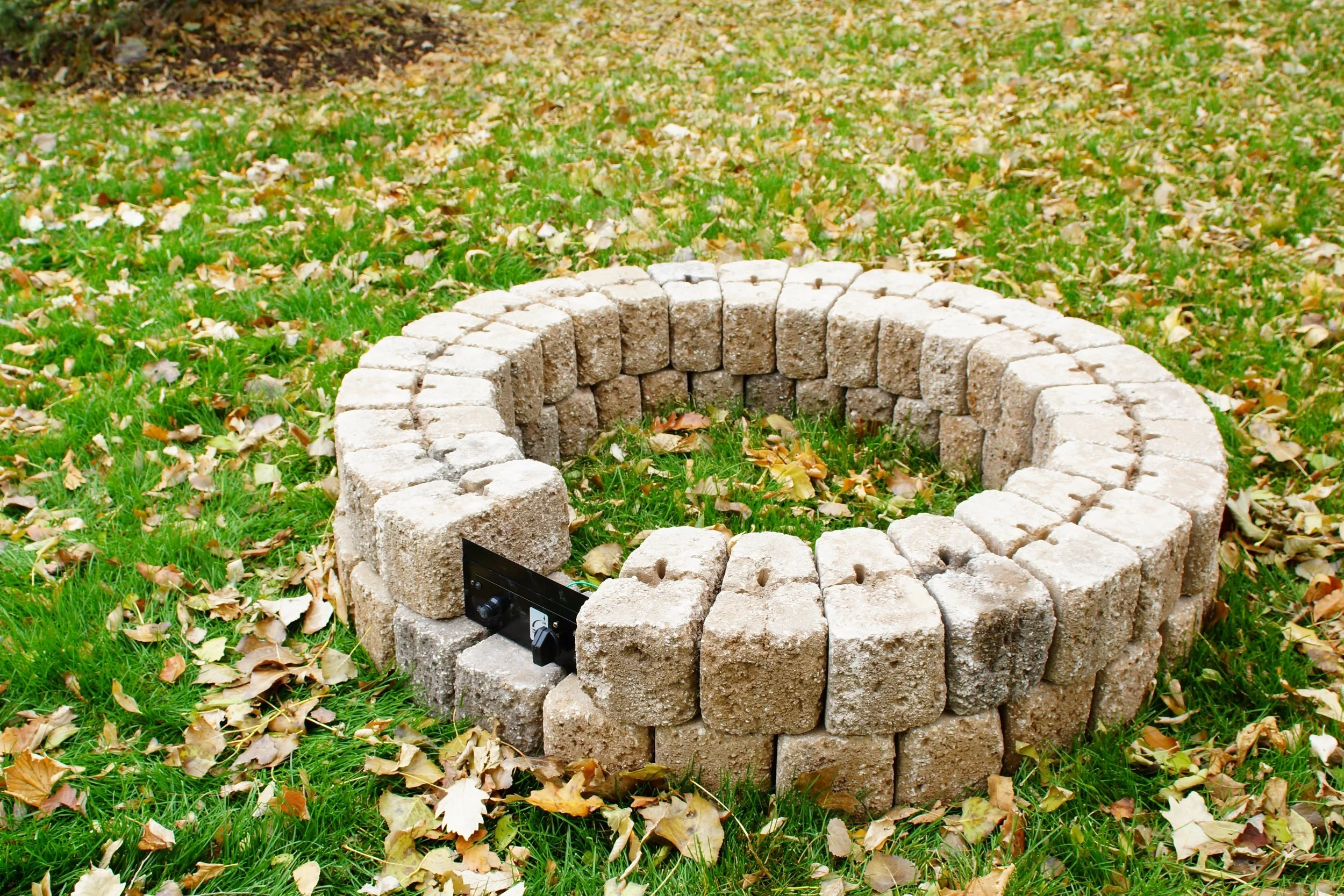

5. Place the next ring of concrete block, leaving space for the control panel and optional vent block. If you choose to forgo the vent block, concrete blocks must have adequate space between them to allow air flow underneath the burner, we reco…

5. Place the next ring of concrete block, leaving space for the control panel and optional vent block. If you choose to forgo the vent block, concrete blocks must have adequate space between them to allow air flow underneath the burner, we recommend at least 10 square inches total. Consult your Gas Burner Kit manual for specific instructions.

6. Once you have your concrete blocks spaced appropriately, carefully remove one block at a time and apply concrete adhesive. Place the block back on the ring and apply pressure. Repeat this process for each block.

6. Once you have your concrete blocks spaced appropriately, carefully remove one block at a time and apply concrete adhesive. Place the block back on the ring and apply pressure. Repeat this process for each block.

7. Assemble your burner and place on top of the concrete block ring. Ensure there is at least 1” overlap to secure the burner ring. Consult the Gas Burner Kit manual for proper assembly instructions, clearance to combustible ratios, and gas connection instructions.


8. Lay the third layer of concrete block. Repeat the adhesive process from step 5.

8. Lay the third layer of concrete block. Repeat the adhesive process from step 5.

9. Let concrete adhesive cure. Add Lava Rock until burner area is covered with approximately 2 inches of rock.

9. Let concrete adhesive cure. Add Lava Rock until burner area is covered with approximately 2 inches of rock.

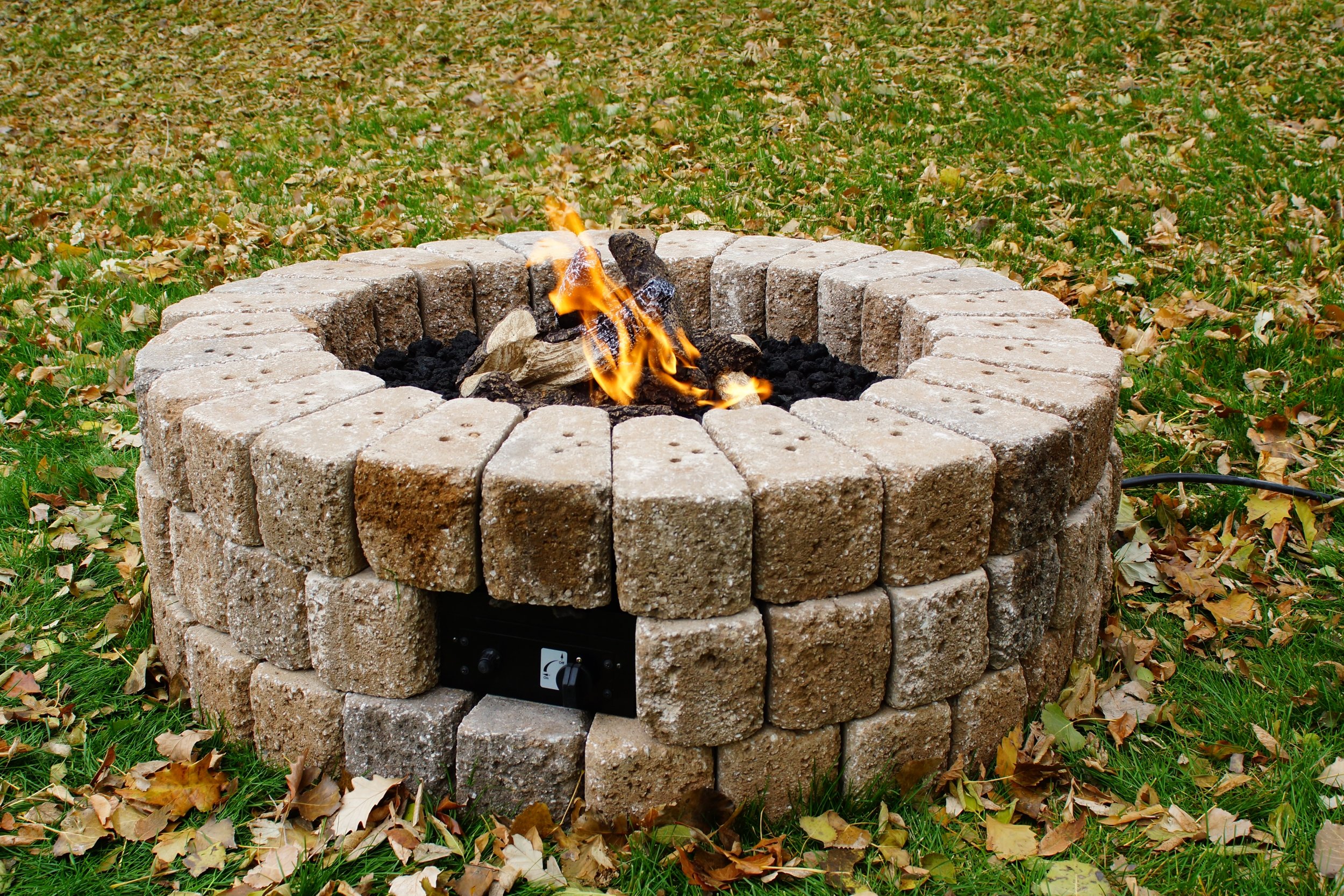

10. Light your new fire pit, sit back, relax, and enjoy!
