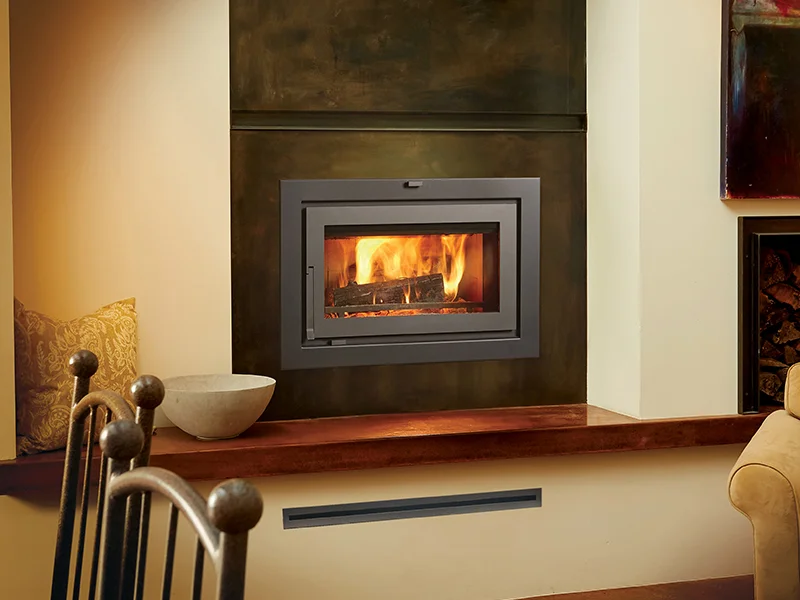

42 Apex Clean Face

The 42 Apex Clean Face is a natural convection wood fireplace that features state-of-the-art catalytic technology. This model delivers high performance, clean-burning heat, while showcasing a spectacular fire-view through its massive rectangular door. Designed to be flexible for all installation applications, the 42 Apex is the perfect choice for remodels and new home construction, as its simple installation parameters allow this fireplace to be featured anywhere in your home, including interior walls! This model features the In-Wall Control Center, optional GreenStart™ Igniter and a sleek “clean face” design with very little metal around the glass.

Unique Features You're Going To Love

  • Sleek rectangular door design – classically understated, linear and very popular

  • Easy to use single air control, artfully hidden in the face design

  • Bypass damper for easy startup fires and smoke-free reloading.

  • Low profile door handle is incorporated into the sleek rectangular door design.

  • Perforated air wash for super clean glass.

  • Uni-body construction and heavy gauge steel

  • Exceptionally quiet 400 CFM fan that minimizes noise while maximizing heat output

  • Multiple chimney options: 8” Air Cooled Chimney or 7” Class A Chimney, allowing for various installation applications.

  • State of the art catalytic operation provides you with one of the cleanest burning zero clearance wood fireplaces in the industry

  • In-wall control center – The 42 Apex™ features the industry’s first in-wall control that combines digital catalytic temperature readout and a slide rheostat for the standard fan. This user-friendly device houses all of your fireplace’s controls into one simple, sleek design that does not require batteries and can be easily mounted and seamlessly integrated into the wall. With this wall control you have the ability to adjust the amount of heat being distributed into the room, understand when your fireplace is performing at optimum efficiency, and even start your fire with the push of a button!

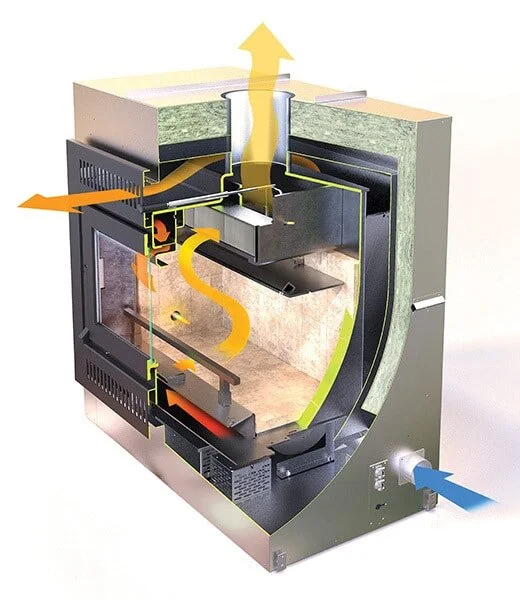

Clean Burning Catalytic Technology

  • Cool outside air is drawn in for combustion.

  • A metered amount of air enters the preheated air chamber, converting cold, incoming air into warm combustion air. The air then travels through a screened air wash which diffuses and evenly distributes air across the high quality ceramic glass. The perforated air wash works like a self-cleaning oven to keep the large glass viewing area clean and help the fireplace burn more efficiently.

  • An additional boost to the primary fire is achieved by air inlets near the base of the firebox, allowing for quick and easy startup of the fire. A durable, large catalytic combustor incinerates any leftover particulates, burning almost all of the flue gases and eliminating carbon monoxide.

  • The bypass damper allows for smoke-free fire startups and reloads when open, and assists overnight burns when closed.

  • The low profile door handle is seamlessly incorporated into the door and comes standard with a tool that allows you to open and close the door with ease.

  • The single air control is artfully hidden within the fireplace design and gives you the ability to effortlessly manage the burn rate of the fire. The convection chamber naturally circulates the air around the fireplace and returns it into the room as heated air. As the fireplace heats up the air flow increases, delivering more heated air into your home.

  • The exceptionally quiet 400 CFM convection fan (mounted below the firebox) comes standard and minimizes noise while maximizing heat output.


The greatest wood burning option ever!

Starting your wood fireplace or insert has never been easier. Simply load your wood into the firebox, push the GreenStart™ button, and you’ll have a roaring fire within minutes!

You can also use the GreenStart™ Igniter when adding new wood or refreshing your fire after an overnight burn. Your fireplace door stays closed during startups; NO MORE SMOKY STARTS, NO MORE SLOW STARTS, ANYONE CAN DO IT!


Specs:

Maximum Burn Time:

Up to 12 Hours

Maximum Log Size:

24"

Weight:

670 lbs.

Efficiency:

73.1%

Heating Capacity:

Up to 2,500 Sq. Ft

Heating Output:

74,000 BTU'S / Hour

Firebox Size:

3.5 Cubic Feet

Emissions:

0.93 Grams Per Hour

Construction:

Heavy Gauge Steel

For Architects, Builders & Specifiers:

We can provide installation and owner manuals.

We can provide CAD, BIM, SPECS, SPEC WIZARD, Solidworks, and LEED information if needed.
